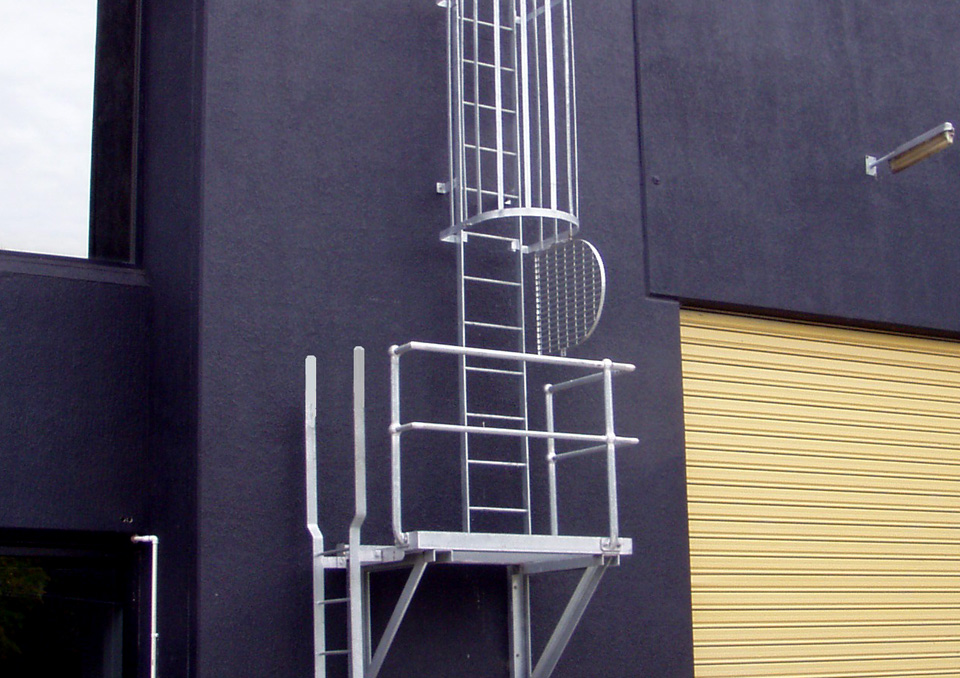

Structural engineers produce drawings that establish load paths, member sizing, and overall stability. These documents are essential, but they are conceptual by nature; they were never meant to guide a workshop floor. A fabricator cannot cut, drill, or weld a single section based on a structural engineer’s design drawing alone. What’s needed is a shop drawing: a fully detailed, component-level document specifying exact dimensions, connection geometry, bolt patterns, and welding requirements for every piece of steel in the structure.
This is the technical bridge between concept and construction. When it’s built correctly, the architect, engineer, builder, and erection crew are all working from a single, reliable source of truth. When it’s built poorly, the consequences ripple through every stage that follows: workshop production stalls, materials get ordered incorrectly, and site crews are left waiting on steel that doesn’t fit.
Structural steelwork in NSW
In NSW, we’re dealing with a two-part regulatory system. AS 4100 governs the structural design and engineering limits of steel members, while AS/NZS 5131 sets the standard for how that steel is fabricated and erected. A shop drawing referencing both standards is telling everyone downstream that the design meets its structural limits and the manufacturing process meets its required tolerances.
Central to AS/NZS 5131 is the Construction Category (CC1 to CC4), assigned by the engineer of record based on the structural risk and consequence of failure. This category determines how rigorous the documentation needs to be, what welder qualifications are required, and how much non-destructive testing (NDT) has to happen before sign-off.
Compliance is tracked through the Fabrication Construction Data Report (FCDR) index, a framework developed jointly by Construction Quality Australia and the Australian Steel Institute. Rather than compiling records after the fact, the FCDR requires welding plans, welder registers, and fastener assembly registers to be submitted progressively as the project moves forward. It spreads quality assurance responsibility across the whole supply chain, which means a gap in the shop drawings can surface as a compliance gap much later, often when it’s hardest to fix.
When drawings don’t align with the assigned Construction Category, certifying authorities and engineers will reject the steel package outright. Retrofitting compliance (running additional NDT or upgrading welder qualifications after fabrication is already underway) is one of the costliest and slowest ways to fix a documentation problem.
What happens if you get it wrong?
Structural steel is one of the most capital-intensive components of any build, and the final installed cost is made up of several distinct layers: base material supply, workshop fabrication, coatings and surface protection, connection hardware, and delivery and site erection. Installed costs across these categories typically land between $3,000 and $5,000 per tonne, depending on complexity and site access.
Fabrication workshops generally operate on gross margins of around 10–15%. A detailing error in material quantities, section sizes, or connection details may wipe out that margin entirely, and that’s before the steel even reaches site.
Once an error escapes the workshop and shows up during installation, the cost curve steepens. Site rework brings direct labour, emergency freight for replacement steel, scrapped material, and idle crews waiting on standby. And under AS/NZS 5131, the options for on-site correction are limited. Clause 6.7.1, for example, prohibits hand flame cutting of bolt holes in column base plates except for minor localised rectification. If a base plate is detailed incorrectly, there’s no quick torch fix; the component often needs full re-fabrication or a formal engineering concession, both of which mean schedule delays that ripple through the rest of the program.
What happens when detailing goes wrong?
Delays rarely start on the workshop floor. They almost always trace back to uncoordinated or incomplete drawings that engineers are forced to reject during review. A drawing can come back Approved, Approved as Noted, Revise and Resubmit, or Rejected, and anything short of a clean approval costs time, typically five to fifteen business days per review cycle, sometimes more.
The most common faults behind these rejections include:
- Incomplete connection details
Missing weld sizes, bolt grades, spacing, or plate thicknesses, forcing an RFI and stalling production.
- Spatial coordination errors
Steel members clashing with HVAC ducts, precast concrete, or glazing systems that weren’t accounted for during modelling.
- Inconsistent drawing presentation
Overcrowded layouts, missing reference levels, or incorrect scaling that leaves workshop boilermakers guessing.
- Neglected erection constraints
Components detailed without regard for crane capacity, transport limits, or site access, resulting in steel that can’t physically be delivered or lifted.
- Unaccounted tolerance accumulation
A failure to coordinate with adjoining materials like concrete footings, leaving clearances (such as the standard 20mm gap for non-loadbearing walls) out of alignment.
Each of these is preventable with the right process, and increasingly, the right technology.
How 3D modelling and CNC precision can help
Leading fabricators have moved detailing into three-dimensional Building Information Modelling platforms such as Tekla Structures, SDS/2, and Advance Steel. Working in a fully resolved 3D model rather than 2D drawings allows automated clash detection to catch spatial conflicts with mechanical, architectural, and precast systems before any steel is cut.
That same model feeds directly into the workshop. Detailing software exports Numerical Control (NC) files straight to CNC plasma cutters, laser cutters, and drilling lines, so every hole, bevel, and cope is produced with sub-millimetre accuracy. Every member also carries a unique assembly mark linked to the erection plan, which allows trial assemblies to happen in the workshop before anything is dispatched, catching fit issues on the shop floor rather than forty storeys up.
